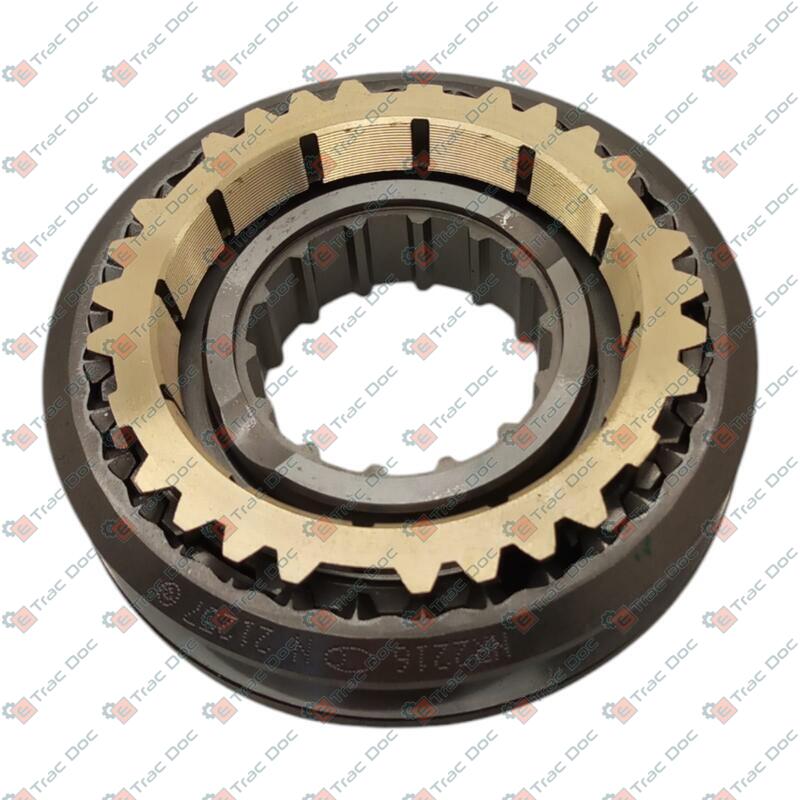

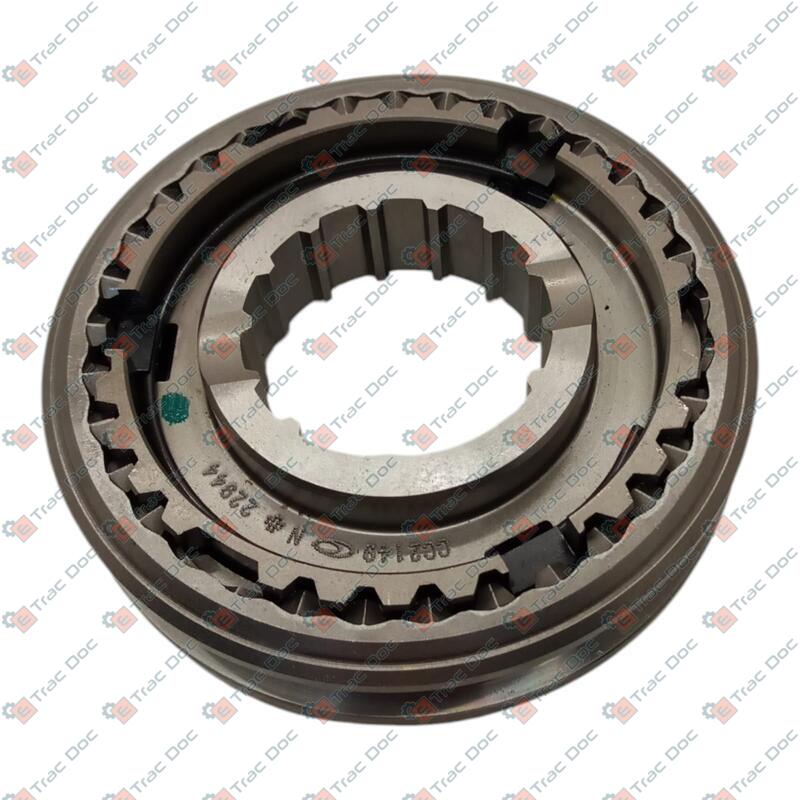

External width of sliding sleeve 24 mm.
external diameter of sleeve 104 mm.
Sleeve throat depth 5 mm.
Sleeve throat width 11.5 mm.
internal fitting diameter 42×45.5 mm. with 14 grooves
total height with mounted ring 25.5 mm.
LAMBORGHINI – 674-70 N 774-80 N
LAMBORGHINI – CROSS
LAMBORGHINI – GRAND PRIX
LAMBORGHINI – N CROSS
LAMBORGHINI – OLD MODELS LAMBORGHINI
105 FORMULA -> WDT1051001
R 573-60N
R 574-60N
R 674
R 674-5
R 674-70
R 674-70 N
R 774
R 774-80
R 874 T
R 874-90 T
LAMBORGHINI – R3
LAMBORGHINI – R3 EVO
LAMBORGHINI – R3 EVO (STAGE 3A)
LAMBORGHINI – R3 T-TB (STAGE 3A)
SAME – ANTARES
SAME – EXPLORER
SAME – EXPLORER II
SAME – EXPLORER II SPECIAL
SAME – EXPLORER SPECIAL
SAME – EXPLORER T-TB
SAME – EXPLORER³
SAME – EXPLORER³ (STAGE 3A)
SAME – EXPLORER³ T-TB (STAGE 3A)
SAME – OLD MODELS SAME
EXPLORER 55-> EXP55 1001
EXPLORER 60-> EXP60 1001
EXPLORER 65 SPECIAL
EXPLORER 70 SPECIAL
EXPLORER 75 SPECIAL
EXPLORER 80 SPECIAL
SAME – ROW CROP
