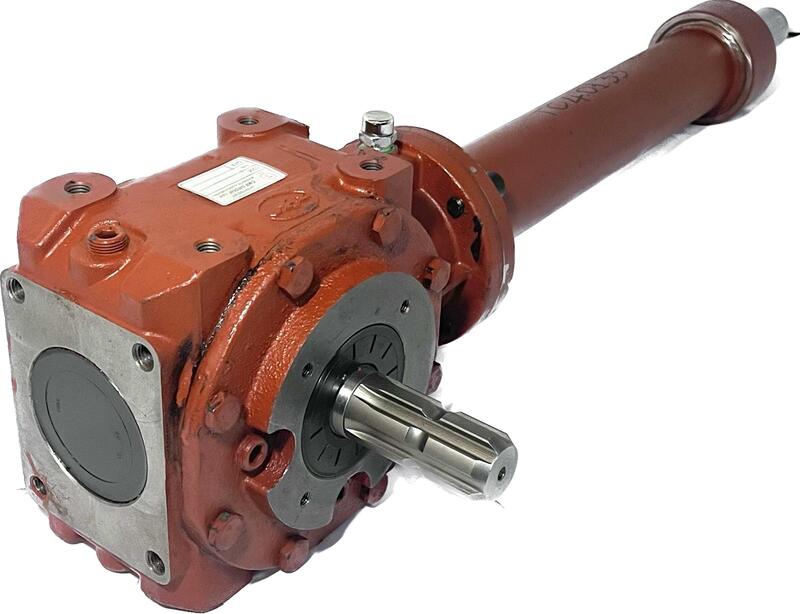

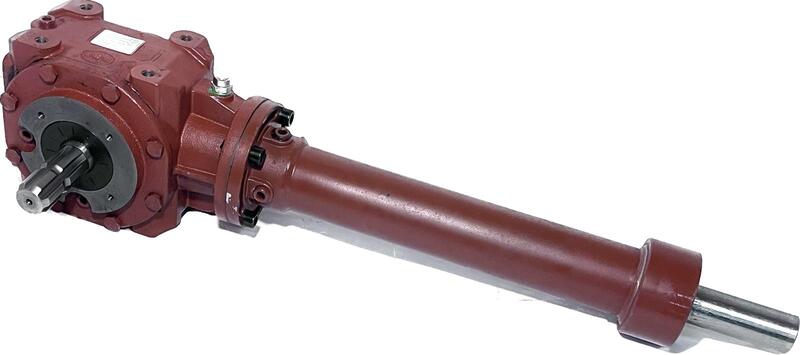

GEAR BOX FOR CMR T101 GRASS FLIPPER WITH 615 mm EXTENSION. – AFTERMARKET – 4.01.33
€619,75 (€ 507,99 + IVA)
with built-in freewheel
standard input shaft diameter 1’3/8″ = 35 mm. with 6 splines
output shaft diameter 40 mm. smooth with slot for 12 mm keyway.
transmission ratio 3:1 in multiplication
total length 820mm.
4 upper – lower M12 holes, center distance 83×114 mm.
4 side holes M12 center distance 83×114 mm.
extension centering diameter 99 mm.
Shipped without 85W140 transmission oil sold separately
Related Products:
2 in stock
To check compatibility with your vehicle, scroll downAdditional information
| Weight | 34,00 kg |
|---|---|
| Net weight | 34.00 Kg |
| Brand | |
| Item number | 4.01.33 |
Ordinando questo codice l'acquirente è responsabile della corretta compatibilità con il proprio mezzo, nel caso di dubbio contattaci!
Vedi errato acquisto su termini e condizioni Leggi.
SKU: TC4.01.33 Categories: SHREDDERS AND GRASS CHOPPERS SPARE PARTS, TRANSMISSION BOXES THRESHERS AND SPARE PARTS, WORKING OF THE SOIL
